Forged Steel Swing Check Valve

Ürün Ayrıntıları

Place of Origin: China

Ödeme ve Nakliye Şartları

Minimum Order Quantity: 1set

Packaging Details: Plywood box safety packing

Delivery Time: 14 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 100pcs per month

En İyi Fiyatı Bulun

Ürün Ayrıntıları

Ürün Tanımı

Vurgulamak:

Application::	General	Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount	Standard Or Non-Standard::	Standard
Flow way::	Two way	Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing	Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure	Quality Warranty::	18 Months

Application::	General
Medium Type::	Water, steam and oil etc.
Mounting Type::	Direct Mount
Standard Or Non-Standard::	Standard
Flow way::	Two way
Actuation::	Manual, Electric, Pneumatic,Automatic
Sealing Performance::	Sealing
Working Temperature::	Normal Temperature And High Temperature
Pressure Application::	Normal Pressure
Quality Warranty::	18 Months

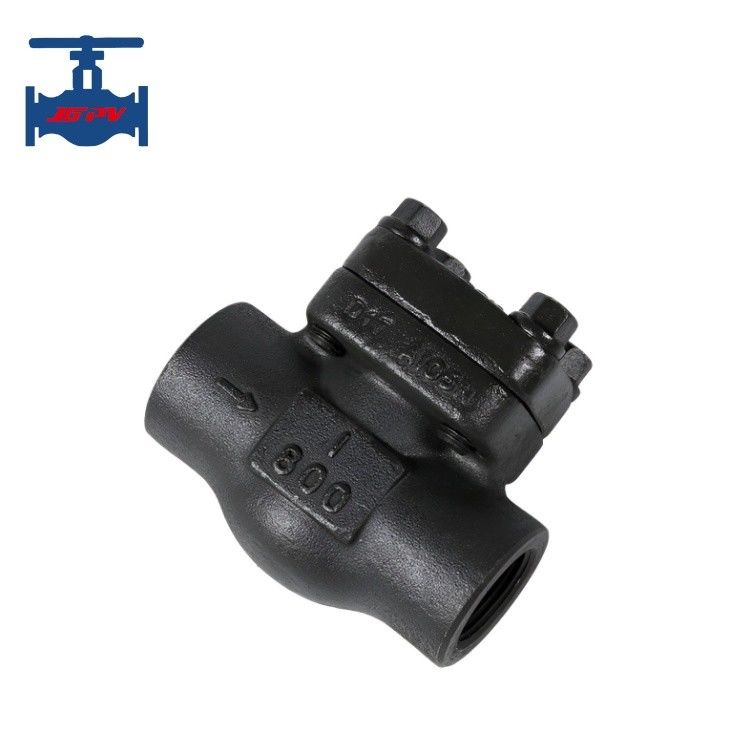

Forged Steel Swing Check Valve

Highlight: Forged Steel Swing Check Valve

Product introduction:

Forged steel check valves have three types of bonnet designs. The first is the bolted bonnet: for valves designed in this form, the body and bonnet are connected by bolts and nuts, sealed with a spiral-wound gasket (made of 316 stainless steel with flexible graphite insert). Metal ring joints can be used upon special customer requests. The second design is the welded bonnet: valves of this design feature a threaded connection between the body and bonnet, with full-weld sealing. Through-weld connections can be adopted for special customer requirements. The third is the pressure-self-sealing bonnet: valves with this design have a threaded body-bonnet connection, sealed by an internal pressure self-tightening ring.Check valves exist in three different structural designs: lift check valves, ball check valves, and swing check valves.

Product technical parameters:

Diameter nominal DN(mm)		50～500
Pressure nominal PN(MPa)		1.0～2.5
Pressure test Ps(MPa)	Strength test (water)	1.5～3.75
	Seal test (water)	1.1～2.75
Connection way		Flange

Product features:

1, swing check valve is suitable for the occasion of large diameter, installation position is not restricted, usually installed in horizontal pipeline, swing check valve is suitable for the occasion of large diameter, fluid resistance is generally less than the lifting check valve,

2. Swing check valve rocker arm and disc connection using spherical connection structure, so that the disc in the range of 360 degrees have a certain degree of freedom, there is appropriate trace position compensation.

3. Swing check valve with built-in rocker arm swing structure, all valve opening and closing parts are installed in the valve body, do not penetrate the valve body, in addition to the flange part with sealing gasket and sealing ring, the overall no leakage point, eliminate the possibility of valve leakage.
