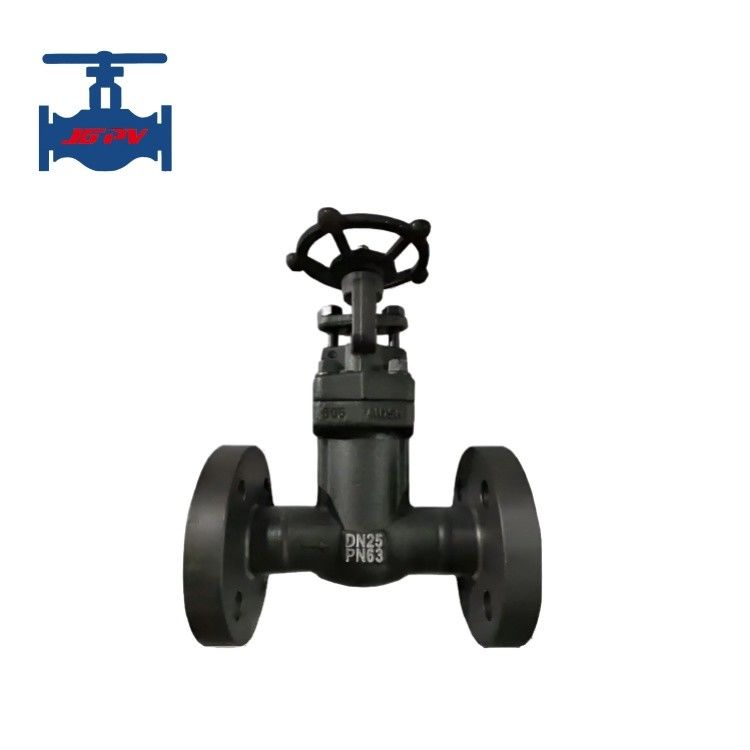

API 602 Standard Class 150 SS304 Bellow Seal A105 Forged Gate Valve

Name: API 602 Standard Class 150 SS304 Bellow Seal A105 Forged Gate Valve
Brand: Shanghai Jianggong Valve Manufacturing Co., Ltd.
SKU: WZ41H-JGPV
Price: 549.90 USD
Availability: InStock

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: JGPV

Model numarası: WZ41H-JGPV

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 takım

Fiyat: USD99.9/pc to USD999.9/Set

Teslim süresi: 14 gün

Ödeme koşulları: L/C,T/T,Western Union

Yetenek temini: ayda 1000 adet

En İyi Fiyatı Bulun

Ürün Ayrıntıları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                A105 kalıp kapı valfi, Sınıf 150 Kalıp Kapı Valfi, API 602 Standart Kalıp Kapı Valfı


Standart veya standart dışı:	Standart	Uygulama:	Genel
Ürün Özellikleri:	Endüstriyel Vana	Amaç:	Boru hattı açılıp kapanıyor
Üretim zanaat:	dövmek	Çiğ madde:	A105, F11, F22, F304, F316, F321 vb.
Adli basınç:	150LB-600LB	Port Boyutu:	1/2" - 2"
test standardı:	Mukavemet testi ve sızdırmazlık testi ve müşteri gereksinimi	kalite garantisi:	18 ay

Standart veya standart dışı:	Standart
Uygulama:	Genel
Ürün Özellikleri:	Endüstriyel Vana
Amaç:	Boru hattı açılıp kapanıyor
Üretim zanaat:	dövmek
Çiğ madde:	A105, F11, F22, F304, F316, F321 vb.
Adli basınç:	150LB-600LB
Port Boyutu:	1/2" - 2"
test standardı:	Mukavemet testi ve sızdırmazlık testi ve müşteri gereksinimi
kalite garantisi:	18 ay

API 602 Standard Class 150 SS304 Bellow Seal A105 Forged Gate Valve

Product introduction:

Forged steel gate valve is composed of components such as valve body, valve cover, valve stem, gate plate, and sealing parts. Among them, the valve body and valve cover are made of high-quality forged steel, which has high strength and good corrosion resistance. The valve stem is made of stainless steel material, which has good corrosion resistance and wear resistance. The gate is a key component of the valve, and its sealing performance directly affects the effectiveness of the valve. The sealing structure of forged steel gate valves is usually metal sealed, which can effectively prevent medium leakage.

And the other key component of the bellow sealed gate valve is the bellow pipe, its lower end is automatically welded with the valve stem assembly, and the upper end is automatically welded with the connecting plate to form a metal barrier between the fluid medium and the atmosphere, ensuring zero leakage of the valve stem.

This special type of dual sealing design, bellows and graphite packing to ensure zero leakage, If the bellows fails, the valve stem packing will also avoid leakage and comply with international sealing standards.The valve cover comes with a grease fitting, which can directly lubricate the valve stem, nut, and shaft sleeve, however, the traditional gate valves can only add lubricating oil to the threads.

Product technical parameter:

Model	Z61H-JGPV
Pressure nominal	1500lb to 2500lb
Port size	1/2" - 2"
Sealing type	Pressure sealing sealing
Test pressure (Strength)	1.5 times of pressure nominal
Test pressure (Sealing)	1.1 times of pressure nominal
Working temperature	≤600℃
Medium application	Water, steam, oil and weak corrosive mediums
Connection	Flange, screw and weldable connections
Driven method	Hand-wheel, bevel gear and electric actuator optional
Installation range	Automation pipeline control in power, metallurgy, petrochemicals, environmental protection, energy management, fire protection systems, etc.

Product features:
