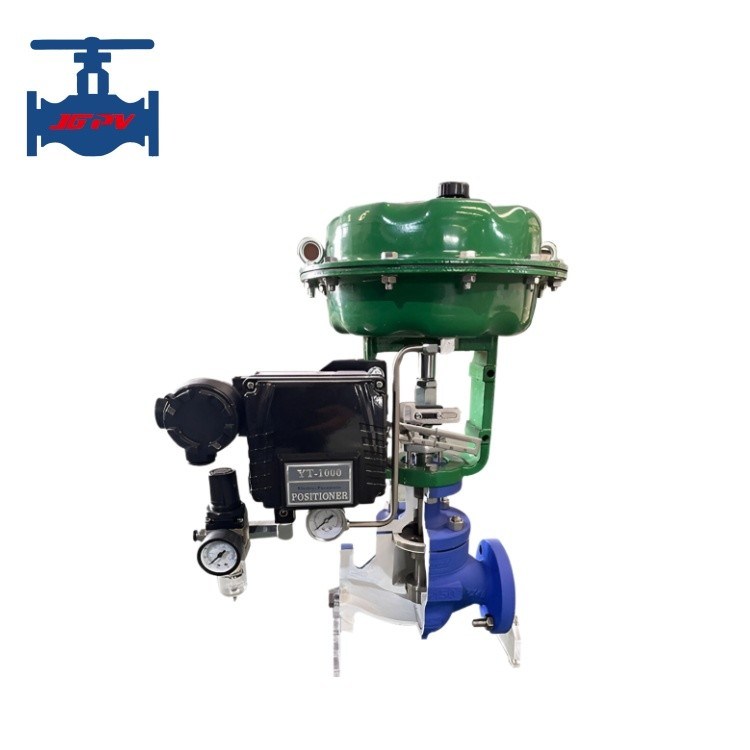

Pneumatic Control Valve with Diaphragm Structure for High Regulation Accuracy and 18 Months Warranty

Ürün Ayrıntıları

Menşe yeri: Çin

Marka adı: JGPV

Ödeme ve Nakliye Şartları

Min sipariş miktarı: 1 takım

Ambalaj bilgileri: Kontrplak kutusu güvenlik paketleme

Teslim süresi: 14 gün

Ödeme koşulları: L/C,T/T,Western Union

Yetenek temini: Ayda 500 Set

En İyi Fiyatı Bulun

Ürün Ayrıntıları

Ürün Tanımı

Vurgulamak:
                                                                                                                                                                                                                                                                                                                                                                                                                Diaphragm Structure Pneumatic Control Valve, High Regulation Accuracy Diaphragm Proportional Valve, 18 Months Warranty Regulating Valve


Başvuru::	Genel	Sertifika::	ISO9001, ISO14001
Orta Tip::	Su, buhar ve yağ vb.	Bağlantı::	Dişli / flanşlı / kaynaklı
Standart veya standart dışı::	Standart	Akış yolu::	İki yönlü
Çalıştırma::	Manuel, elektrik, pnömatik, otomatik	Sızdırmazlık Performansı::	Sızdırmazlık
Çalışma Sıcaklığı::	Normal sıcaklık ve yüksek sıcaklık	Basınç Uygulaması::	normal basınç
Kalite Garantisi::	18 ay

Başvuru::	Genel
Sertifika::	ISO9001, ISO14001
Orta Tip::	Su, buhar ve yağ vb.
Bağlantı::	Dişli / flanşlı / kaynaklı
Standart veya standart dışı::	Standart
Akış yolu::	İki yönlü
Çalıştırma::	Manuel, elektrik, pnömatik, otomatik
Sızdırmazlık Performansı::	Sızdırmazlık
Çalışma Sıcaklığı::	Normal sıcaklık ve yüksek sıcaklık
Basınç Uygulaması::	normal basınç
Kalite Garantisi::	18 ay

Pneumatic Control Valve with Diaphragm Structure for High Regulation Accuracy and 18 Months Warranty

Pneumatic Control Valve, Hot Oil Steam Diaphragm Proportional Valve

Product Overview

Pneumatic diaphragm regulating valve is a widely used regulating equipment in the field of industrial automation, which has the advantages of compact structure, high regulating accuracy, easy operation, and good stability. It uses compressed air or nitrogen gas as a power source to drive the opening and closing of the diaphragm regulating valve, achieving precise control of parameters such as flow rate and pressure of the fluid medium.

Technical Specifications

Parameter	Value
Basic Deviation	+/-1.0%
Leakage Rate	5x10-3 rated capacity
Return Difference Rated	1.0%
Rated Flow Coefficient	+/-10%
Dead Zone	1.0%
Inherent Flow Characteristics	Slope +/-30%

Key Features

Diaphragm Structure: The diaphragm regulating valve adopts a diaphragm structure, which separates the valve body from the actuator, achieving the sealing and stability of the valve. At the same time, the diaphragm can effectively prevent corrosion and wear of the actuator by the fluid medium, improving the durability of the valve.
High Regulation Accuracy: Pneumatic diaphragm regulating valves have high regulation accuracy, which can achieve precise control of fluid media. By changing the magnitude of gas pressure, precise adjustment of valve opening can be achieved, thereby achieving precise control of parameters such as flow rate and pressure of fluid media.
Easy Operation: The pneumatic diaphragm regulating valve is easy to operate, and the valve opening can be adjusted by controlling the pressure of compressed air or nitrogen. At the same time, the valve also has a manual adjustment function, which can be manually operated when automatic adjustment fails.
Excellent Stability: Pneumatic diaphragm regulating valves have good stability and can maintain stable performance under various working conditions. At the same time, the valve also has overload protection function, which can automatically close the valve when overloaded, protecting the equipment from damage.

Product Gallery
